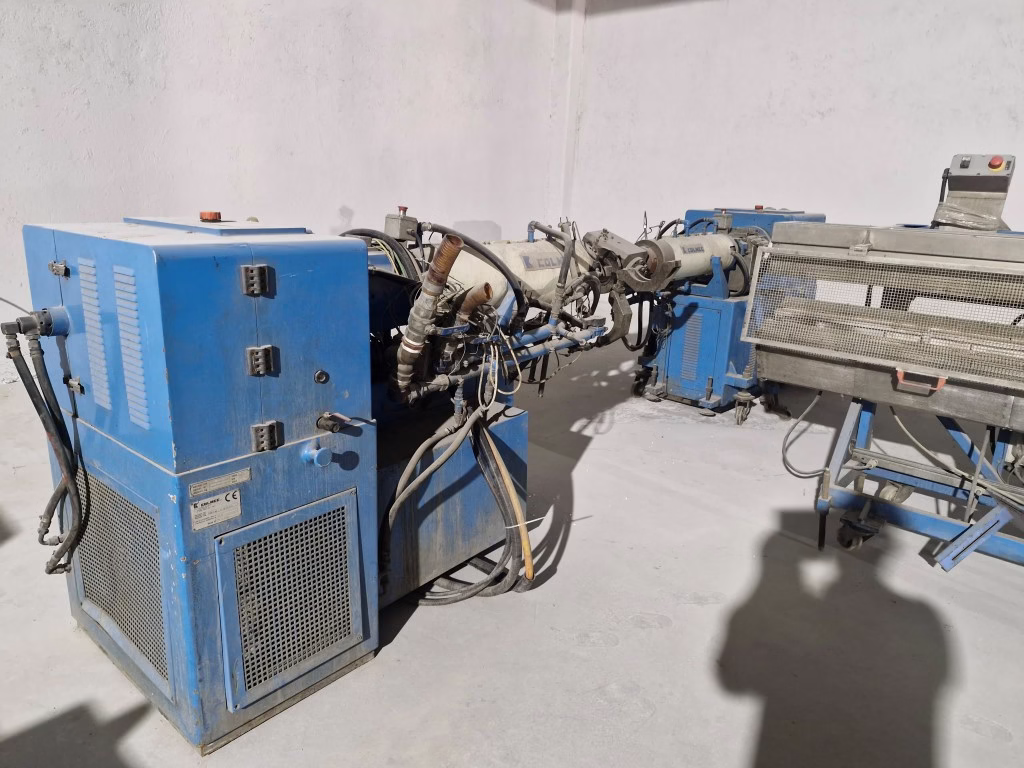

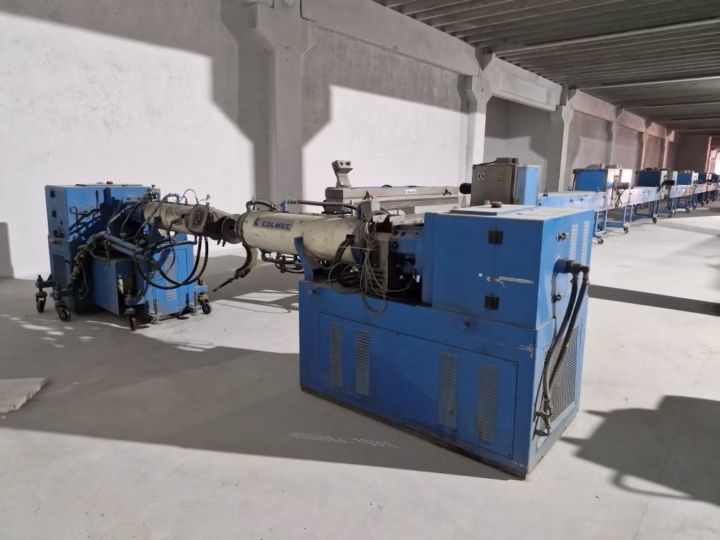

COLMEC 105mm + 80mm Silicon Rubber Insulation line

Made in 2011 and bareky used, this COLMEC Rubber Insulation line is available ready to work.

Conductor type:  Copper
Section range :  0,75 – 10 mm2
Wall thickness: 1 mm
Insulation material: Silicone

Max. diameter over insulation: 8 mm
Max. line speed: 600 m/min

Delivery includes:
1 x Hysteresis brake FR 300-I
1 x Wire induction heater
Primary extruder
1 x Silicon feeder
1 x Silicon rubber extruder TGS105-14D
1 x Electric panel
1 x Temperature control unit
1 x Extra for bi-metallic liner
1 x Pressure gauge and temperature sensor
Secondary extruder
1 x Silicon feeder
1 x Silicon rubber extruder TGS80-13,5D
1 x Electric panel
1 x Temperature control unit
1 x Extra for bi-metallic liner
1 x Pressure gauge and temperature sensor
1 x Triplex extrusion head, internal hole passage 20 mm
1 x Vacuum pump

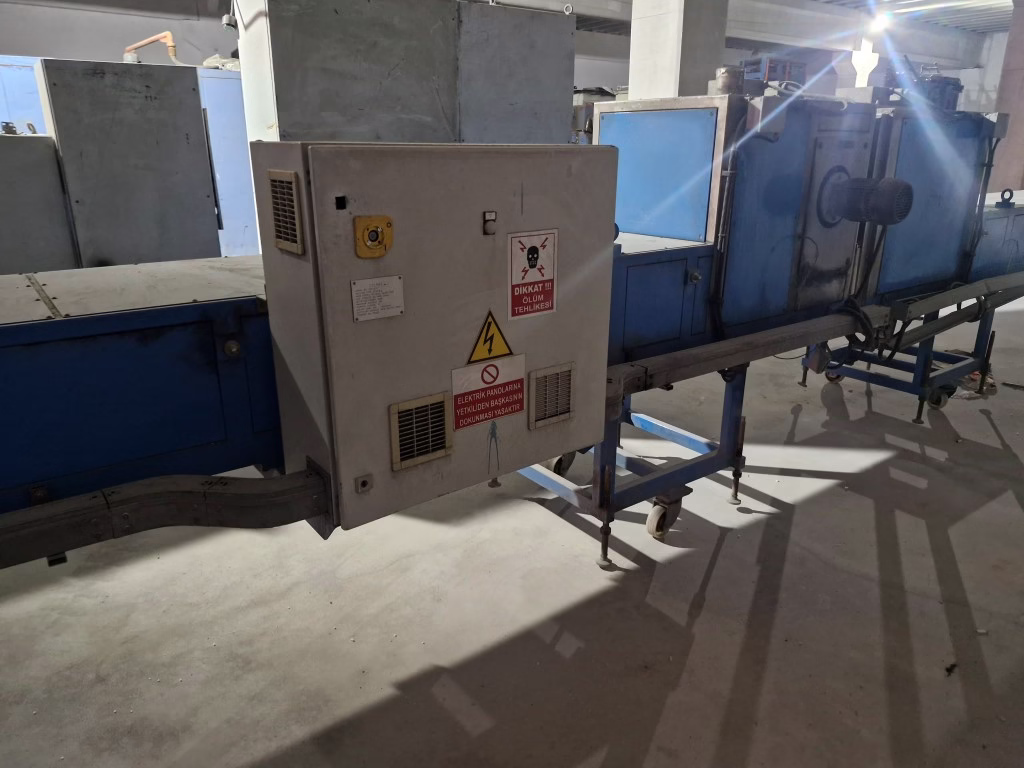

Curing section
1 x CPVO/12/2300 Prevulcanisation oven
5 x Hot air oven type C.FAC/V6
1 x Capstan fly wheel combined pulley type K800
1 x Controls
1 x Laser head
1 x Spark tester
1 x Electric devices to control and regulate the line
1 x Electrical cables, channels and supports
1 x Colmec Supervisory system comprising of HDSW, PLC
