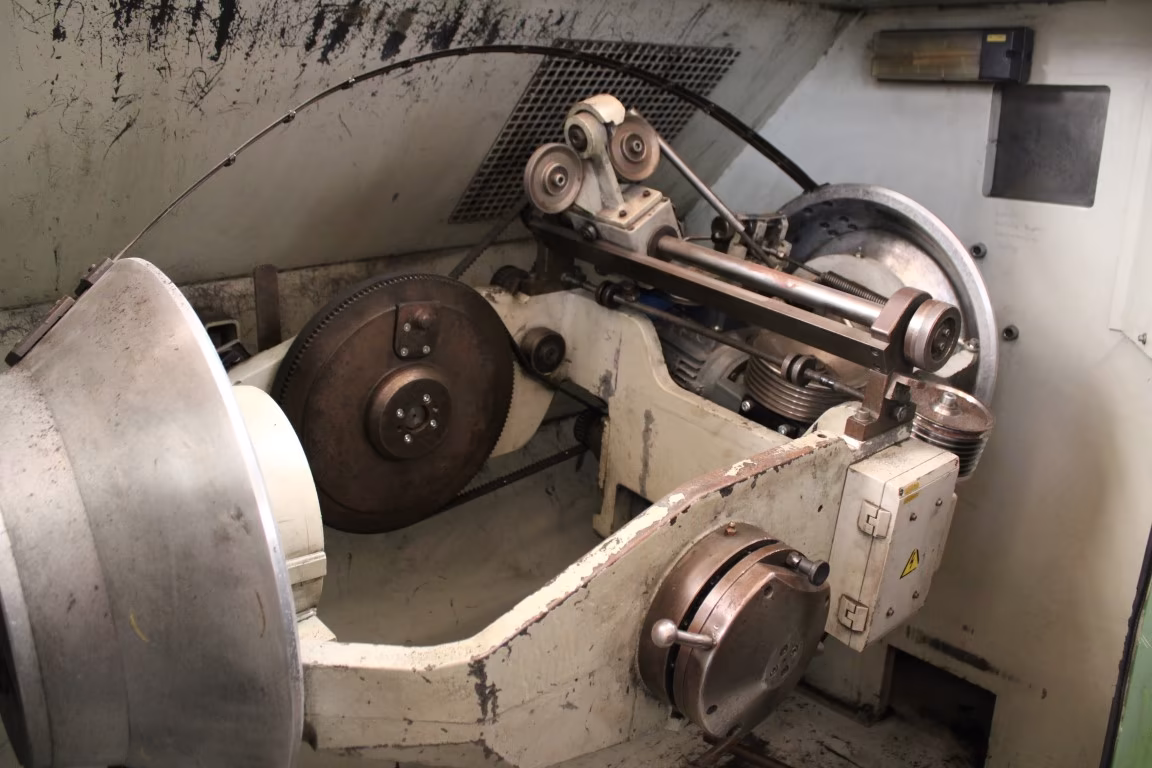

BEKAERT DTK-630EG Double Twist Buncher 630mm

Double twist buncher used to produce copper sections of flexible strands from 0,09 up to 6,00mm²

All drives made through AC motors and controlled through PLC Siemens. Supervision with OP

Equipped with soundproof cabinet

Take up Bobbin sizes
-Overall diameter: 630mm
-Overall width: 475mm
-Bore diameter: 127mm
-Weight: 600kg

Lifting platform: electric type AC motor 1,5 kW

Speed: 6000 twist/min

Product range
-wire sizes 0,127 – 0,9 mm
-bunch section 0,09 – 6 mm²

Lay length range: 8 -80 mm

Linear speed: 300m/min

Take up pull: 200N

Traverse pitch: 3 to 15mm

Capstan pulling force: 1000N

Motors power
-flyer: 15 kW AC
-capstan: 1,2 kW AC
-take up: 1,5kW AC

Supply voltage: 3 x 400 V
