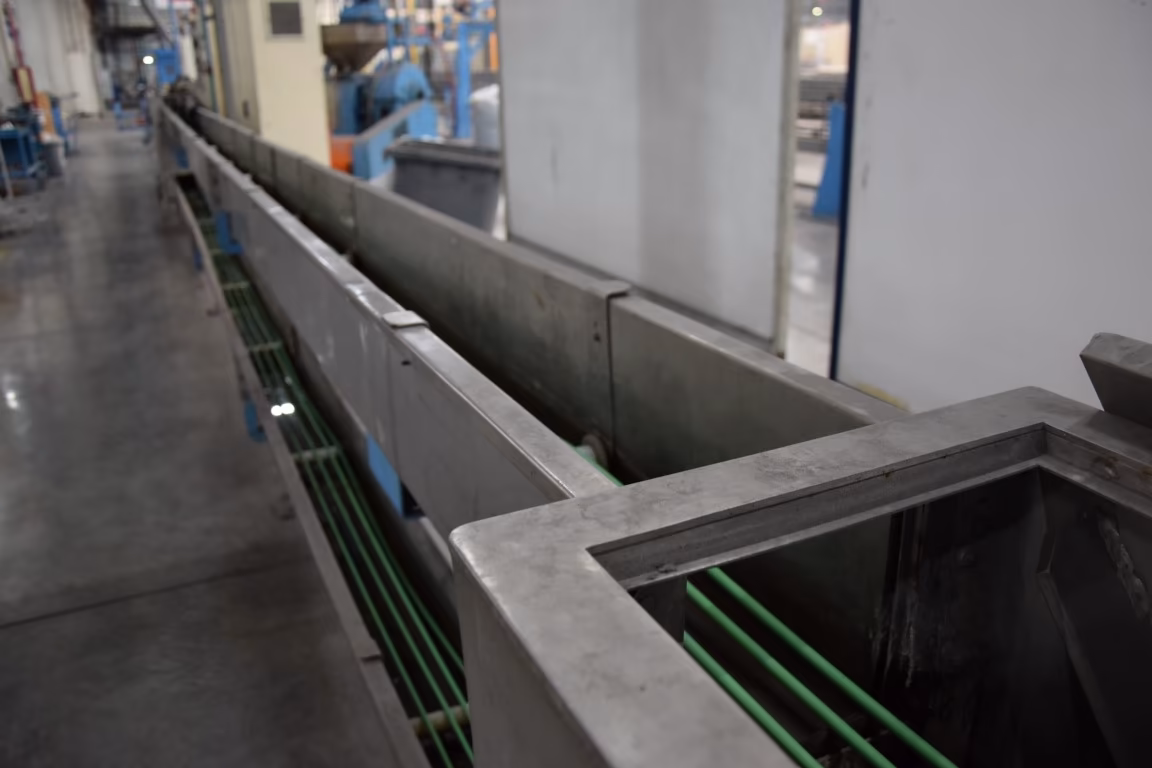

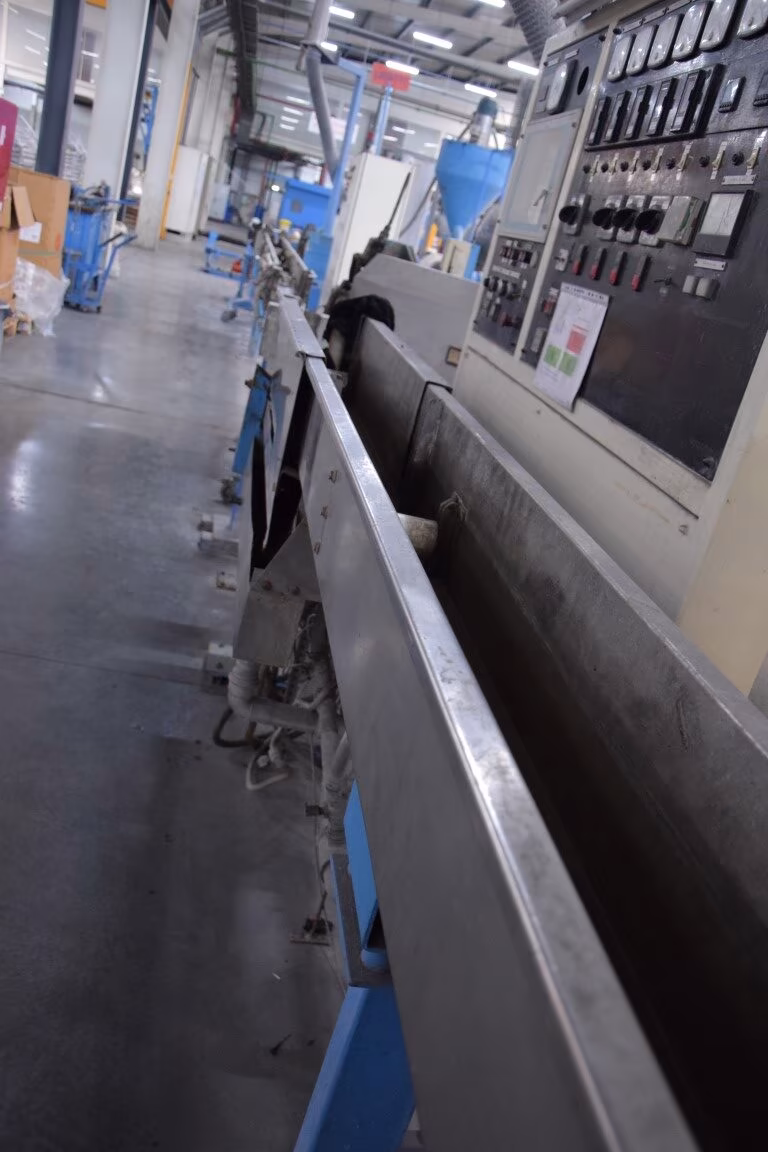

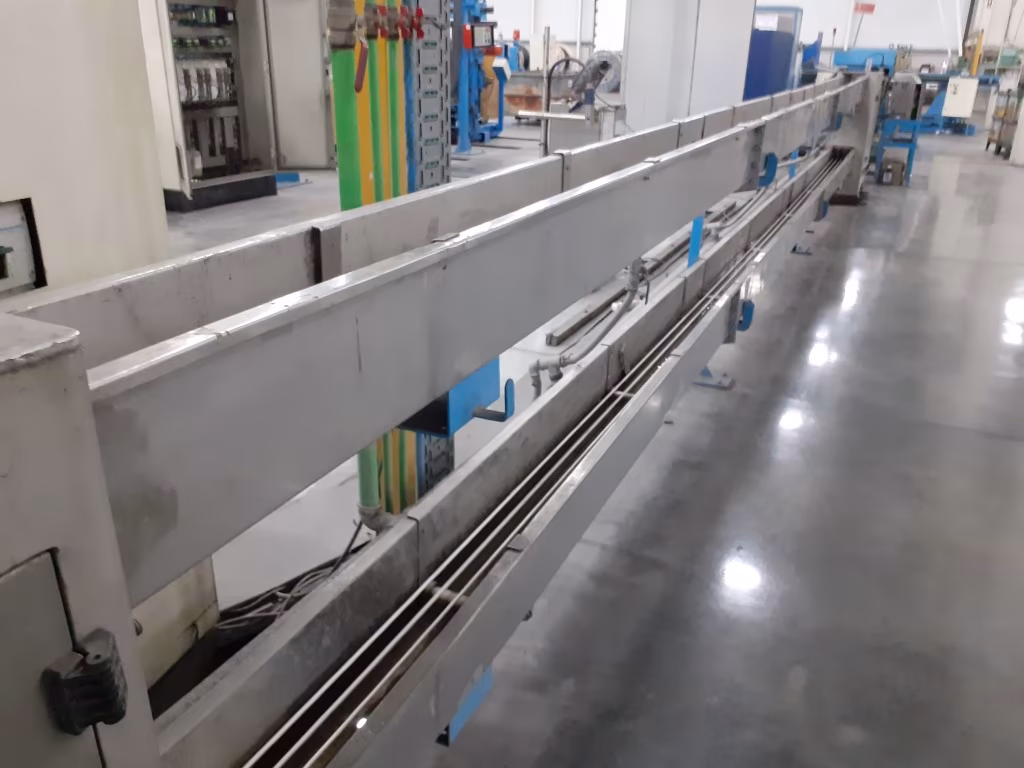

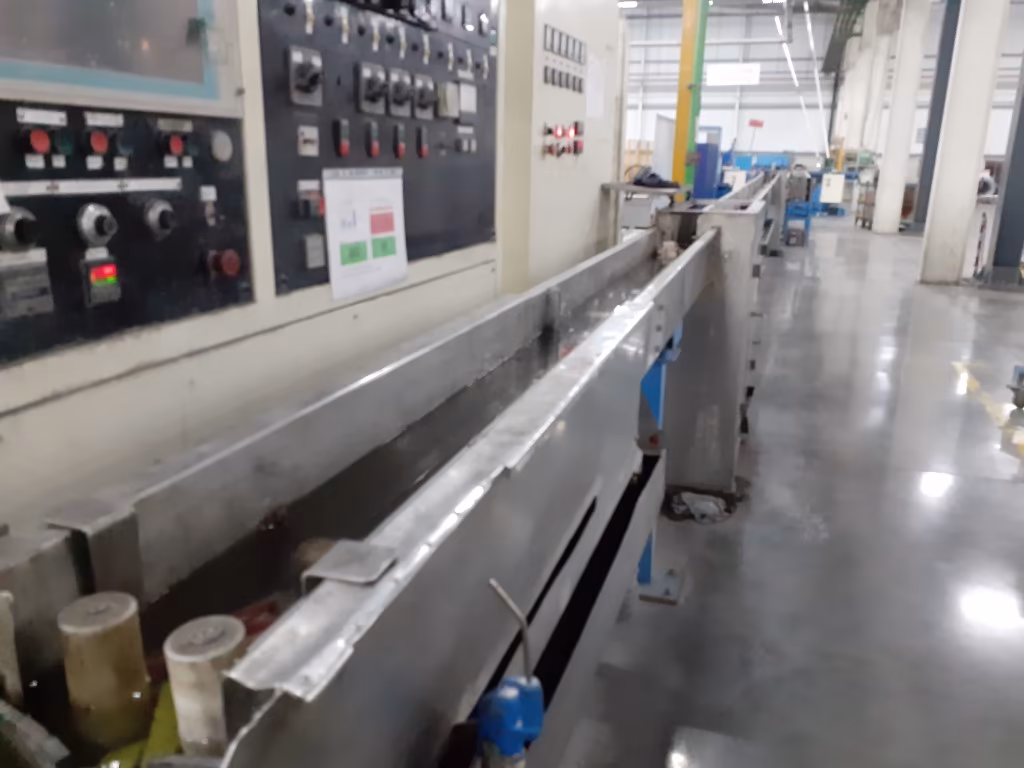

4+4 Multipass Cooling Trough with Telescopic section

img01 4+4 multipass

Gallery:

0340-00216

Cooling trough previously used in a sheating line

Trough are 200mm wide by 200mm high, with a V spahed bottom (270mm high at the deepest point)

Delivery includes:
1. Telescopic Trough 3000mm + 1000m
2. Multipass Trough made of:
* 4 wheels, external diameter 700mm, U shaped groove (H:45mm,
W:20mm)
* 9000mm upper section in 3 parts
* 9000mm lower section in 3 parts
* 4 wheels, external diameter 700mm, U shaped groove (H:45mm,
W:20mm)
3. Exit Trough 1200mm

Some feet are available, not all of them.

There is no drive part, the cable was pulled through by an external caterpillar

Model:
Quantity available: 1
